DVP S12

DVP S12

DIAMANTATRICE C.N.C. BREVETTATA PER PALLINE SINGOLE

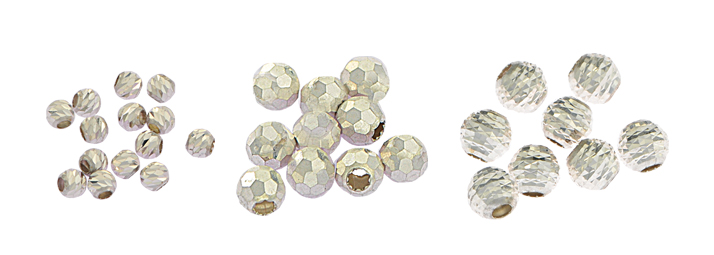

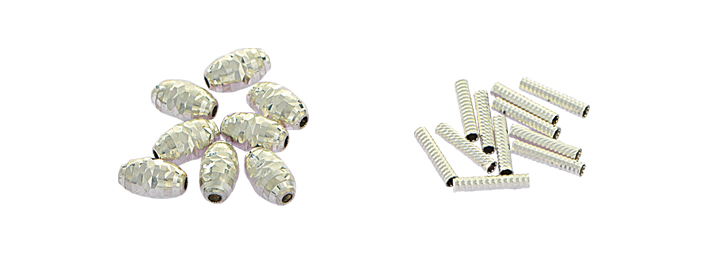

Diamantatrice mod. DVP S12 a controllo numerico computerizzato a 11 assi adatta per eseguire decorazioni varie, sfaccettature, punteggiature, colpetti, stelline su palline singole.



SCARICA LA SCHEDA TECNICA

GUARDA IL VIDEO SU YOUTUBE

COD: DVP-S12 Categoria: Product ID: 2676

Descrizione

TECHNICAL DATA

Machinable Products Beads
Max. diameter beads 12 mm
Number of working axes 11
   Axis tilt Table -40° / +65°
   Axis tilt Tool Heads -45° / +180°
Beads Loader
Max. number of beads 15 beads/min
Vertical Head
Tool rotation speed from 0 to 20000 rpm
Tool pincer diameter 6 mm
Horizontal Head
Tool rotation speed from 0 to 15000 rpm
Tool diameter 80 mm
Installation Data
Wattage 4.6 kW
Power supply 230 V, 50/60 Hz, 1~
Pneumatic supply 6 bar
Max. air consumption 60 Nl/min
Weight 550 kg
