DIAMANTATRICE C.N.C. BREVETTATA PER DECORI VARI SU CATENE/LASTRA

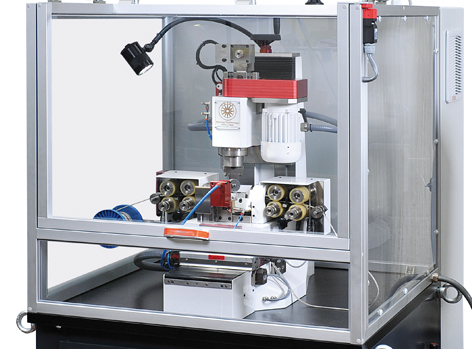

Diamantatrice mod. RI 3, a 5 assi controllati, adatta per eseguire diamantature e decori vari su catene piatte o bombate e lastra.



SCARICA LA SCHEDA TECNICA

GUARDA IL VIDEO SU YOUTUBE

COD: RI-3 Categoria: Product ID: 2720

Descrizione

TECHNICAL DATA

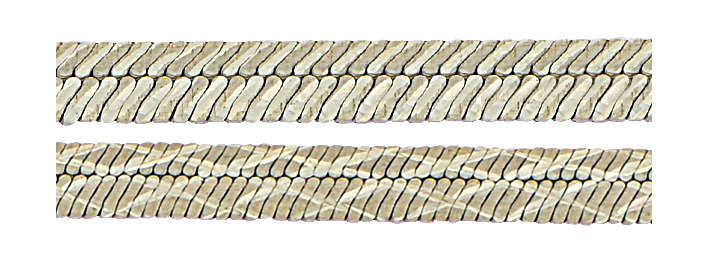

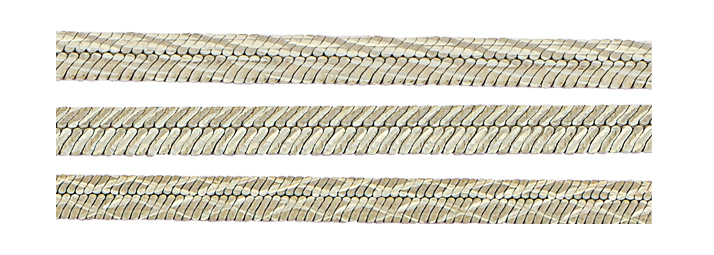

Machinable Products Flat / Convex chains or Strip
Max. convex chain Radius 15 x Width 10 mm

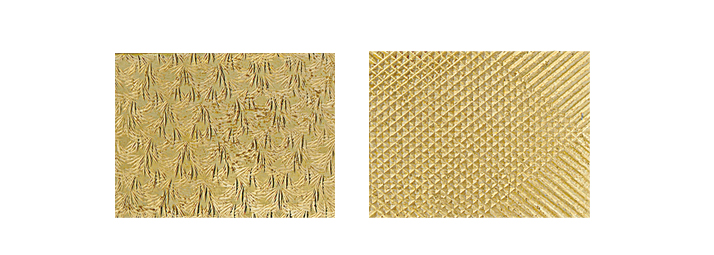

Max. width strip 40 mm
Number of working axes 5
   Y-axis transversal travel Carriage 180 mm
   X-axis feed speed Dragging Unit from 0 to 13 m/min
   C-Axis rotation Horizontal Head from 0 to 300 rpm
   Vibrations axis from 0 to 6000 shots/min
   Tilt chain axis from 0 to 650 °/s
Vertical Head
Max tool rotation speed from 0 to 17000 rpm
Pincer diameter 6 mm
Horizontal Head
Max tool rotation speed from 0 to 9000 rpm
Tool diameter 40 mm
Installation Data
Wattage 3 kW
Power supply 230 V, 50/60 Hz, 1~
Pneumatic supply 6 bar
Weight 480 kg
