RA 3000

RA 3000

DIAMANTATRICE PER SUPERFICI E SMUSSI SU CATENA

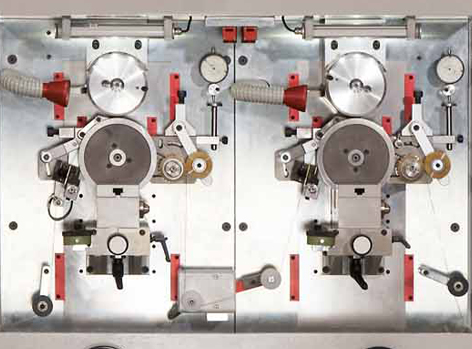

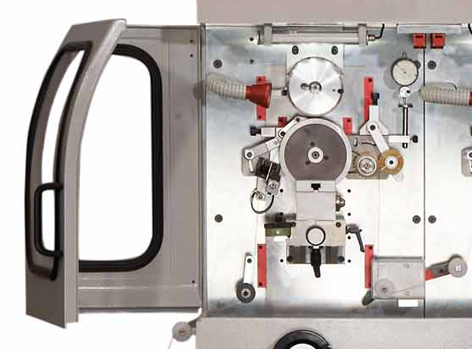

Diamantatrice mod. RA 3000 a due teste verticali predisposta per il montaggio di teste orizzontali, adatta per la lappatura in piano e smussi di catene varie e a sezione quadra.



SCARICA LA SCHEDA TECNICA

COD: RA-3000 Categoria: Product ID: 2797

Descrizione

TECHNICAL DATA

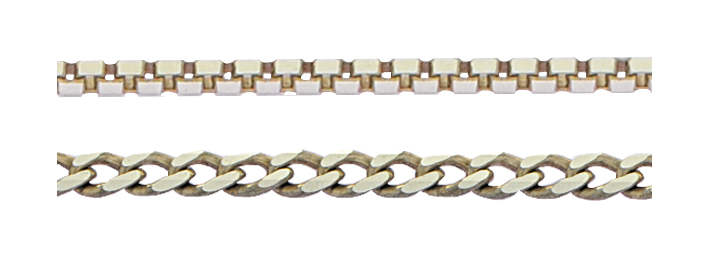

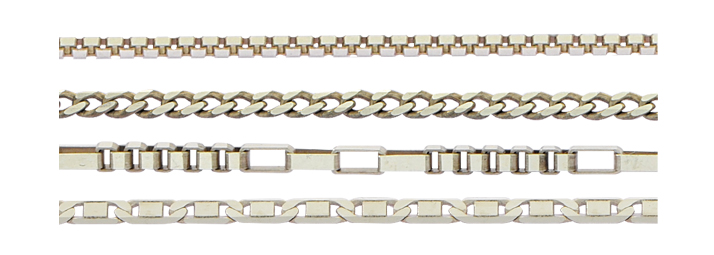

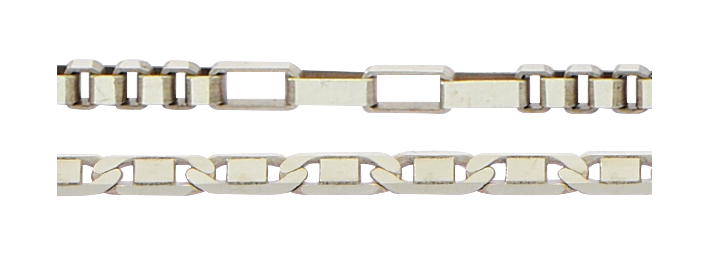

Machinable Products Box / Curb / Cable / Singapore chain
Min. Box chain  0,40×0,40 mm
Dragging Unit
Feed speed from 0 to 5 m/min
Vice Discs Unit
Discs diameter 150 mm
Tilt adjustment from -5° to +5°
Horizontal adjustment from -10 to +10 mm
Vertical adjustment 90 mm
Vertical Head
Speed from 0 to 22000 rpm
Horizontal Head (Optional)
Speed from 0 to 18000 rpm
Tool holder diameter 120 mm
Installation Data
Wattage 6 kW
Power supply 230 V, 50/60 Hz, 1~
Pneumatic supply 6 bar
Max. air consumption 800 Nl/min
Weight 800 kg
