VRT 10

VRT 10

DIAMANTATRICE BREVETTATA PER FILO/TUBO E CATENA ROTONDA E OVALE

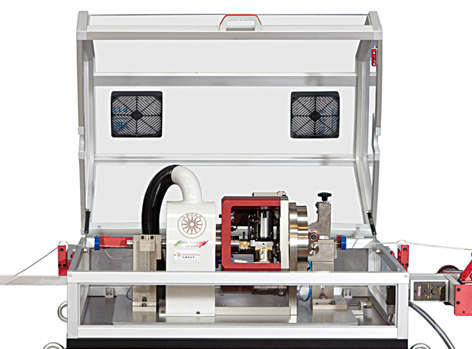

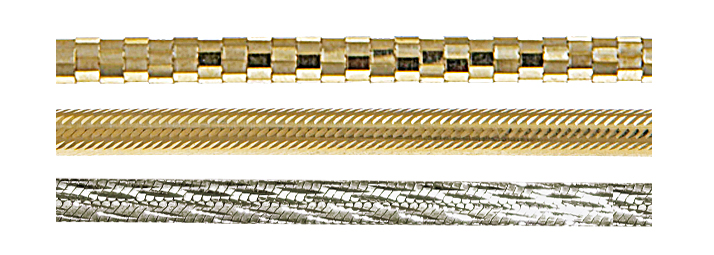

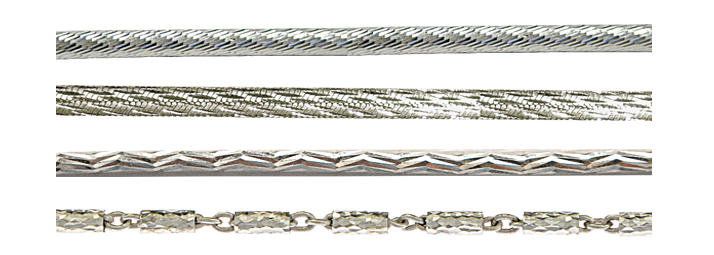

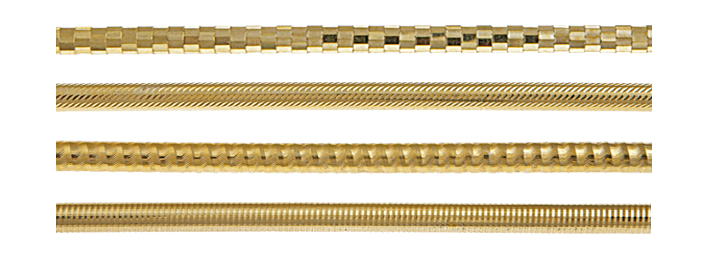

Diamantatrice mod. VRT 10 brevettata, a controllo numerico computerizzato, adatta per realizzare decori vari su filo, tubo e catena a sezione rotonda e ovale, in modo continuo, alternato o a passo.



SCARICA LA SCHEDA TECNICA

GUARDA IL VIDEO SU YOUTUB

COD: VRT-10 Categoria: Product ID: 2945

Descrizione

TECHNICAL DATA

Machinable Products Chain / Wire / Tube
Machinable diameter from  0,25  to  12 mm
Number of working axes 3 (Dragging unit/Rotating drum/Tool)
Dragging Unit
Feed speed from 0 to 3.5 m/min
Rotating Drum
Rotation speed from 0 to 1200 RPM
Vertical Head
Tool rotation speed from 0 to 18000 RPM
Horizontal Head
Tool rotation speed from 0 to 14000 RPM
Tool diameter 80 / 50 / 25 mm
Orientation available from -30° to +120°
Working Mode
Step processing by optical fibre
Drum-tool processing in synchronism
Processing with phase displacement and real time synchronism
Position processing
Installation Data
Wattage 7 kW
Power supply 400 V, 50/60 Hz, 3~
Pneumatic supply 6 bar
Weight 600 kg
