RA 961 A

RA 961 A

DIAMANTATRICE PER FEDI E CERCHI

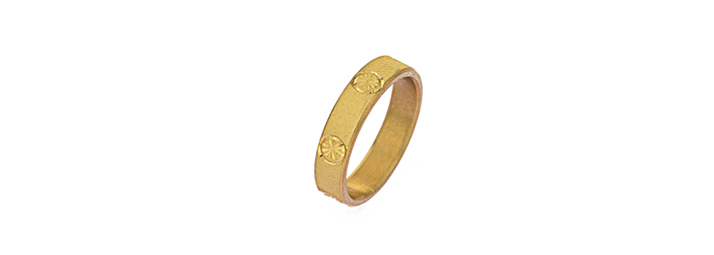

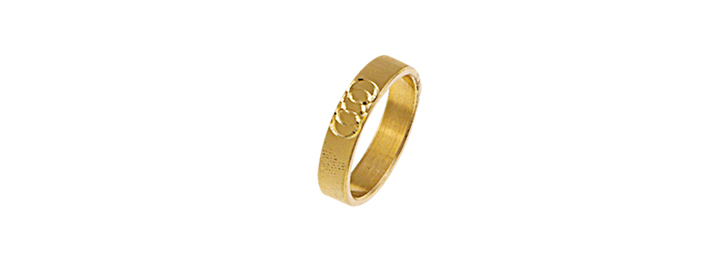

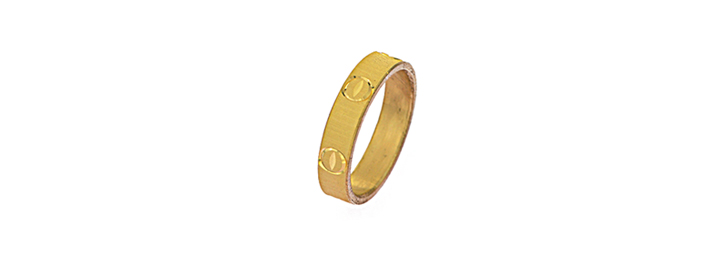

Diamantatrice mod. RA 961 A a due assi controllati, adatta per eseguire diamantature varie e canali su fedi e cerchi.



SCARICA LA SCHEDA TECNICA

COD: RA-961-A Categoria: Product ID: 2628

Descrizione

TECHNICAL DATA

Machinable Products Wedding-rings / Bangles
Number of working axes 3
Divider
Speed from 0 to 1000 rpm
Tilt adjustment From -45° to +45°
Transversal adjustment from –50 to +50 mm
Longitudinal adjustment from -50 to +50 mm
Vertical Head
Speed from 0 to 12000 rpm
Horizontal Head
Speed from 0 to 5000 rpm
Tool holder diameter 155 mm
Installation Data
Wattage 3,5 kW
Power supply 400 V / 50-60 Hz / 3~
Pneumatic supply 6 bar
Weight 550 kg
