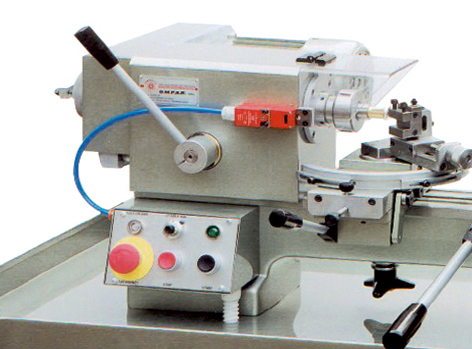

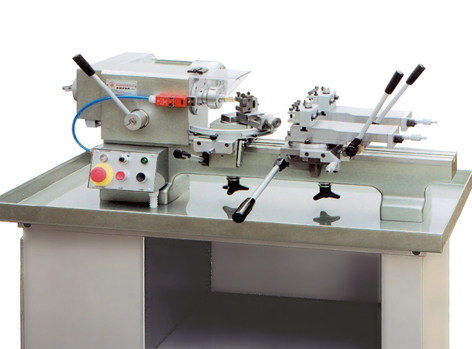

TORNIO UNIVERSALE AD ALTA PRECISIONE PER DIAMANTARE FEDI E CERCHI

Tornio universale mod.115 89 adatto per finiture al diamante di cerchi, fedi, anelli piani e bombati, casse di orologio e minuteria varia non ferrosa.



SCARICA LA SCHEDA TECNICA

COD: RA-961-A-1 Categoria: Product ID: 2640

Descrizione

TECHNICAL DATA

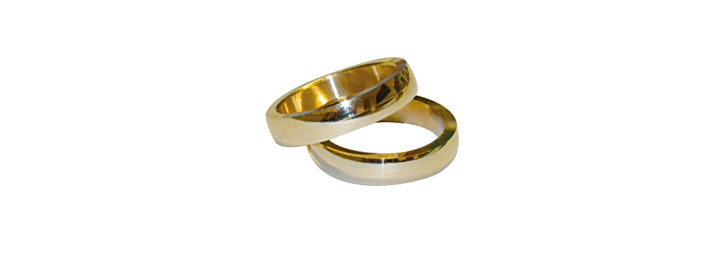

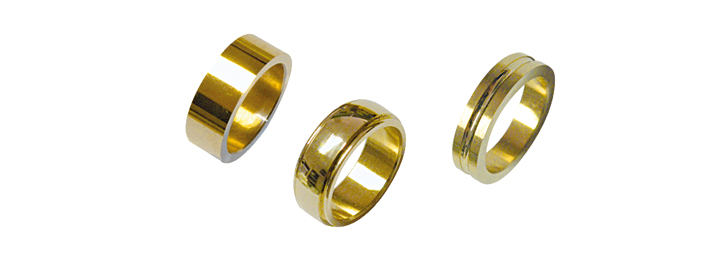

Machinable Products Wedding-rings  / Bangles
Height of spindle 115 mm
Turning tools section 10 x 10 mm
Spindle Drive
Spindle speed from 0 to 4000 rpm
Motor power 0,75 kW

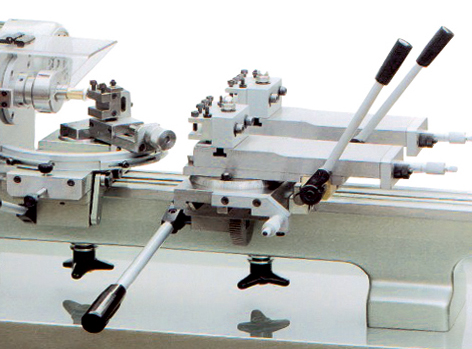

Carriages
Number of longitudinal tool slide 2
Travel of the longitudinal tool slide 50 mm
Travel of the transversal tool slide 80 mm
Height of spindle from the carriage 24 mm
Standard Pincers
Rings inside diameters from 15 to 22 mm
Rings outside diameters from 17 to 24 mm
Bangles inside diameters from 64 to 71 mm
Bangles outside diameters from 68 to 78 mm
Installation Data
Wattage 1,5 kW
Power supply 230 V, 50/60 Hz, 1~
Weight 250 kg
