SIM 1

SIM 1

FORATRICE SEMI-AUTOMATICA PER FEDI E CERCHI

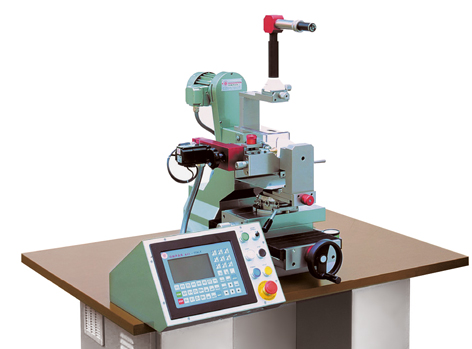

Foratrice semi-automatica per fedi e cerchi mod. SIM 1 ad un asse controllato, adatta per forare e creare castoni per diamanti su fedi e cerchi.



SCARICA LA SCHEDA TECNICA

COD: SIM-1 Categoria: Product ID: 2660

Descrizione

TECHNICAL DATA

Machinable Products Wedding-rings / Bangles
Number of working axes 1
Divider
Tilt adjustment from -45° to +45°
Transversal adjustment from -100 to +100 mm
Longitudinal adjustment from -50 to +50 mm
Vertical adjustment from -10 to +10 mm
Drill Spindle
Speed from 0 to 14000 rpm
Tool pincer diameter 6 mm
Installation Data
Wattage 2,5 kW
Power supply 230 V / 50-60 Hz / 1~
Weight 340 kg
