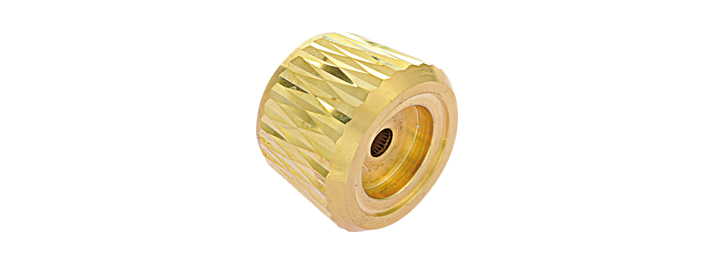

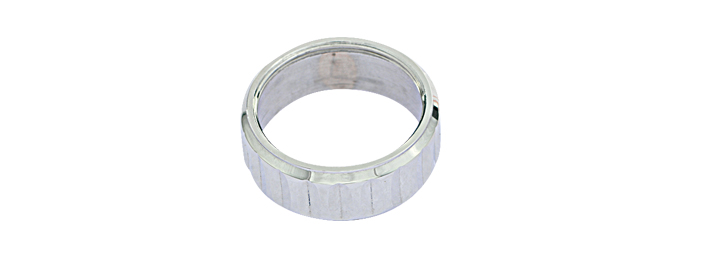

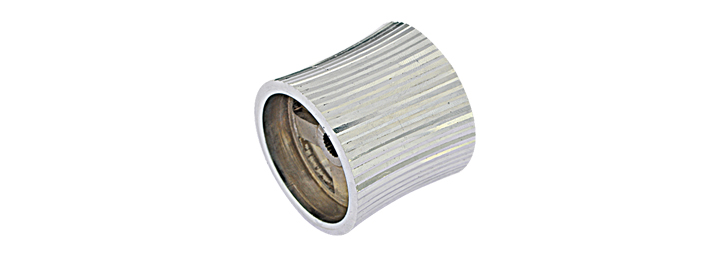

TORNIO AUTOMATICO PER TORNITURE E DIAMANTATURE MANIGLIE

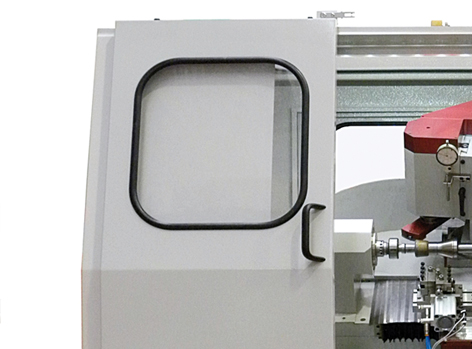

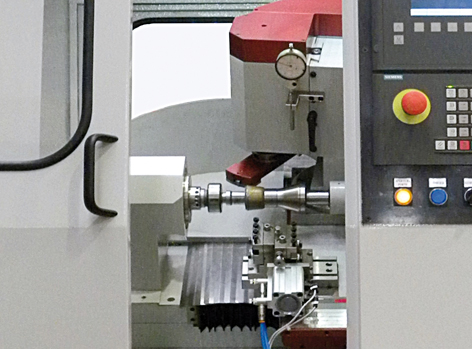

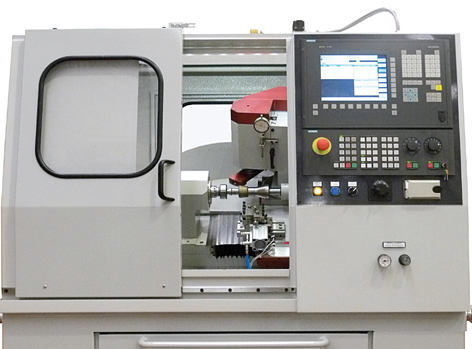

Tornio automatico di precisione mod. TDM 1 CN a 4 assi controllati per la tornitura e la diamantatura di maniglie.



SCARICA LA SCHEDA TECNICA

COD: TDM-1 Categoria: Product ID: 2988

Descrizione

TECHNICAL DATA

Machinable Products Water taps
Number of working axes 4
Height of spindle centre 105 mm
Height of spindle from the carriage 60 mm
Turning tools section 10 x 10 mm
Number of turning tools 2
Spindle Drive
Spindle speed from 0 to 4500 rpm
Motor power 4,8 kW
Carriages
Travel of the longitudinal tool slide 120 mm
Travel of the transversal tool slide 100 mm
Horizontal Head
Speed from 0 to 4500 rpm
Tool holder diameter 210 mm
Installation Data
Wattage 13 kW
Power supply 400 V, 50/60 Hz, 3~
Pneumatic supply 6 bar
Weight 800 kg
