AFFILATRICE PER UTENSILI AL DIAMANTE

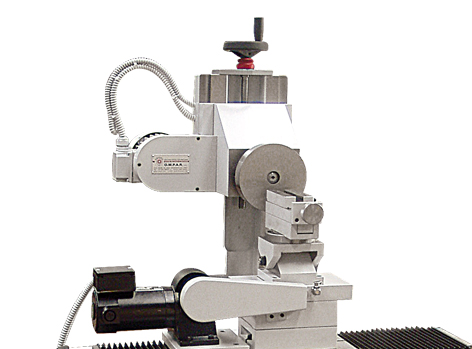

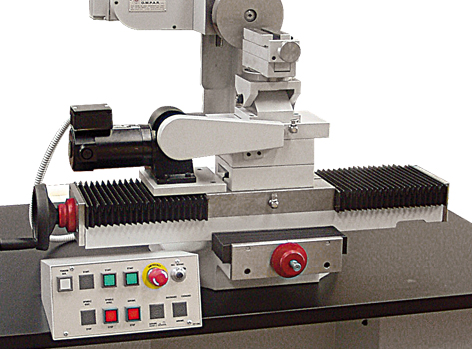

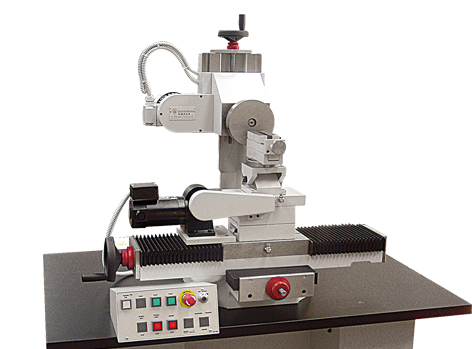

Macchina universale mod. TGM adatta per affilare utensili al diamante.



SCARICA LA SCHEDA TECNICA

COD: TGM Categoria: Product ID: 3000

Descrizione

TECHNICAL DATA

Horizontal Head
Speed from 0 to 4000 rpm
Grinding tool diameter 140 mm
Vertical travel 200 mm
Divider
Tool speed in reciprocating motion from 0 to 80 cycle/min
Horizontal tilt adjustment from -30° to +30°
Vertical tilt adjustment from -30° to +30°
Longitudinal adjustment from -150 to +150 mm
Transversal adjustment from -70 to +70 mm
Installation Data
Wattage 1,5 kW
Power supply 400 V / 50-60 Hz / 3~
Weight 350 kg
Weight 350 kg
