SYNCRO 2

SYNCRO 2

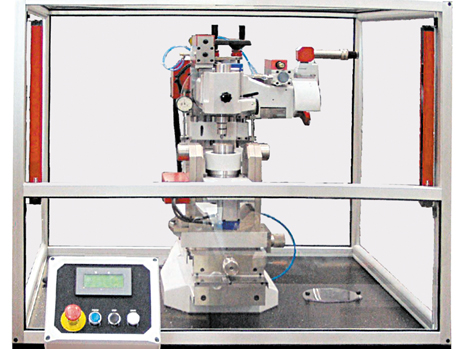

DIAMANTATRICE AUTOMATICA PER MEDAGLIE A 2 TESTE

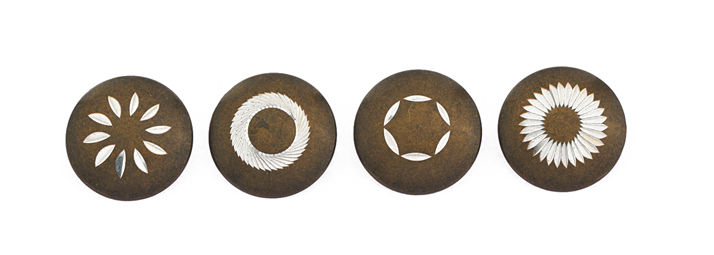

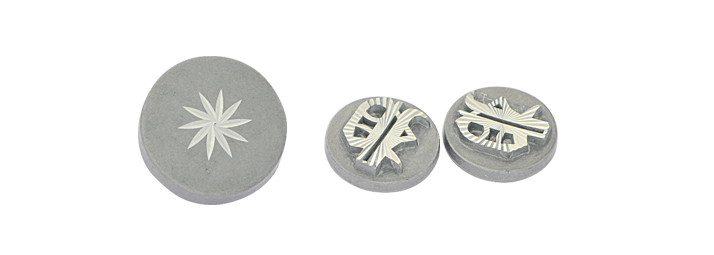

Diamantatrice mod. SYNCRO 2 a 2 teste adatta per realizzare raggiere varie su oggetti quali: medaglie, monete, bottoni e simili in automatico.



SCARICA LA SCHEDA TECNICA

COD: SYNCRO-2 Categoria: Product ID: 2774

Descrizione

TECHNICAL DATA

Machinable Products Flat objects / Medals / Plates / Buttons
Number of working axes 3
Divider
Speed from 0 to 1000 rpm
Max diameter machinable 35 mm
Transversal adjustment from –25 to +25 mm
Longitudinal adjustment from –25 to +25 mm
Vertical Head
Speed from 0 to 12000 rpm
Horizontal Head
Speed from 0 to 5000 rpm
Tool holder diameter 155 mm
Small Horizontal Head (Optional)
Speed from 0 to 10000 rpm
Tool holder diameter 55 mm
Installation Data
Wattage 3,5 kW
Power supply 400 V / 50-60 Hz / 3~
Pneumatic supply 6 bar
Weight 550 kg
