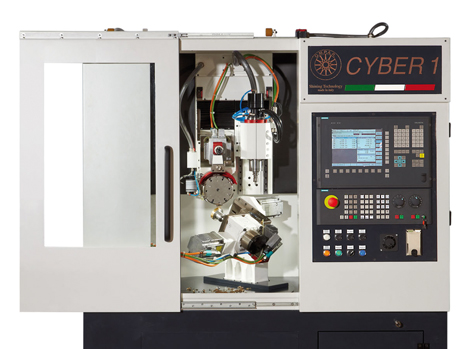

C.N.C. DIAMOND CUTTING MACHINE FOR WEDDING-RINGS AND BANGLES

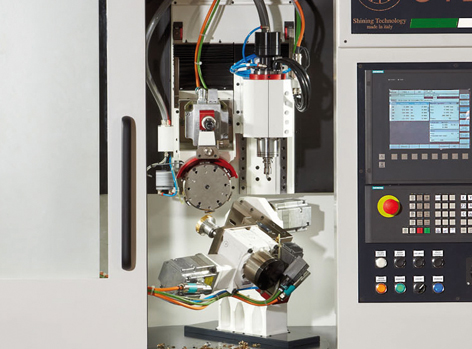

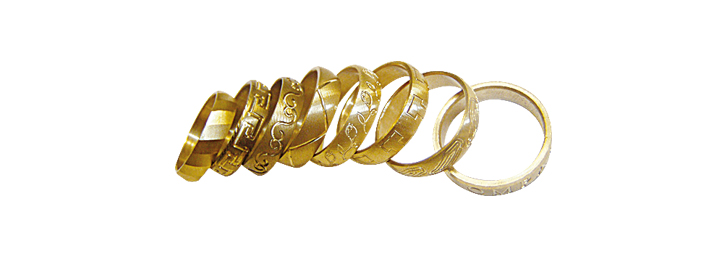

Diamond cutting machine mod. CYBER 1 with two in line heads and 11 controlled axes to carry out decorations and diamond milling on flat and convex rings and bangles, in automatic mode.



DOWNLOAD TECHNICAL DATASHEET

WATCH ON YOUTUBE

SKU: CYBER-1 Category: Product ID: 1996

Description

TECHNICAL DATA

Axes
Number of working axes 10
  Linear axes  W – X – Y – Z1 – Z2
     W-axis vertical travel Pincer 40 mm
     X-axis longitudinal travel Divider 60 mm
     Y-axis transversal travel Heads 500 mm
     Z1-axis vertical travel Horizontal Head 150 mm
     Z2-axis vertical travel Electro-spindle 240 mm
  Rotation axes  A – B – C
      A-axis rotation Pincer 360°
     B-axis tilt Divider -95° / +45°
     C-axis rotation Divider -50° / +100°
Electric Spindle
Driving power 2.2 kW
Speed from 0 to 35000 rpm
Tool shaft size ISO 20
Horizontal Head
Speed from 0 to 4500 rpm
Number of tool 6
Tool holder diameter 160 mm
Tool Magazine
Number of tool stations 20
Maximum tool diameter 60 mm
Maximum tool length 150 mm
Installation Data
Wattage 11 kW
Power supply 400 V, 50/60 Hz, 3~
Pneumatic supply 6 bar
Maximum air consumption 400 Nl/min
Weight 2000 kg

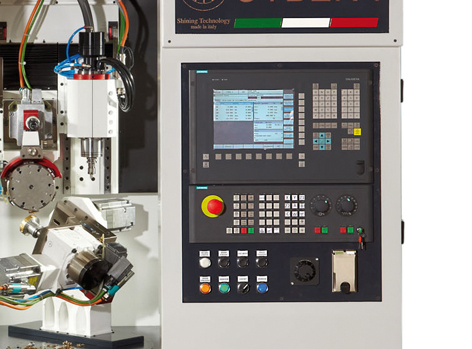

Control System
SIEMENS SINUMERIK 840Dsl
DRIVES SYSTEM SINAMICS
Presetting Tool
m&h 35.10-TS
