C.N.C. PATENTED DIAMOND CUTTING MACHINE FOR MICROCAST SPHERICAL ELEMENTS

Diamond cutting machine mod. DVP S16 with 12 axes computerised numerical control, suitable for diamond cutting microcast spherical beads.



DOWNLOAD TECHNICAL DATASHEET

WATCH ON YOUTUBE

SKU: DVP-S16 Category: Product ID: 2159

Description

TECHNICAL DATA

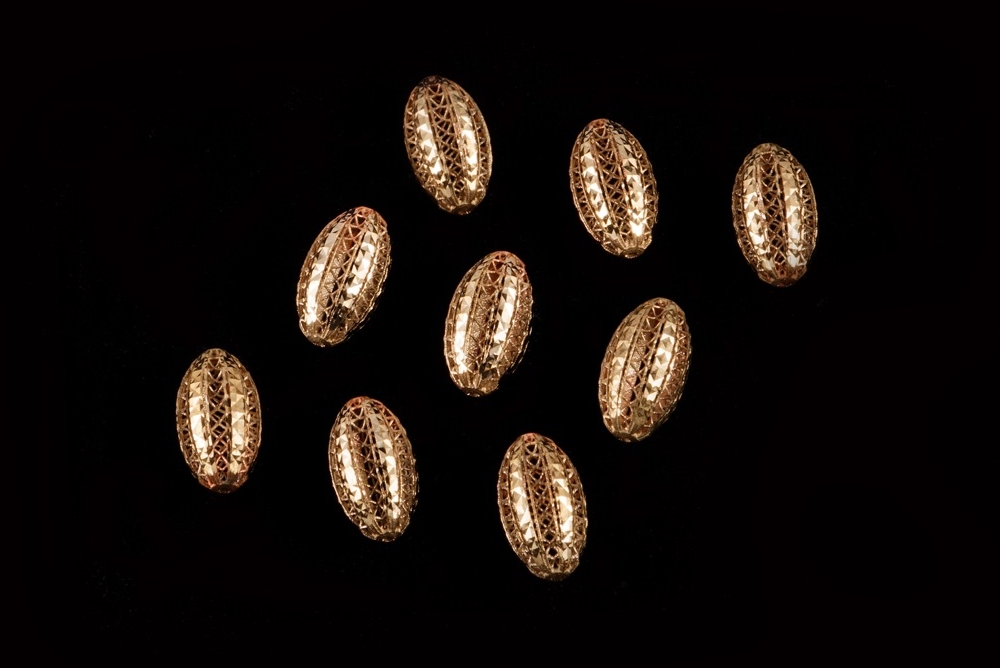

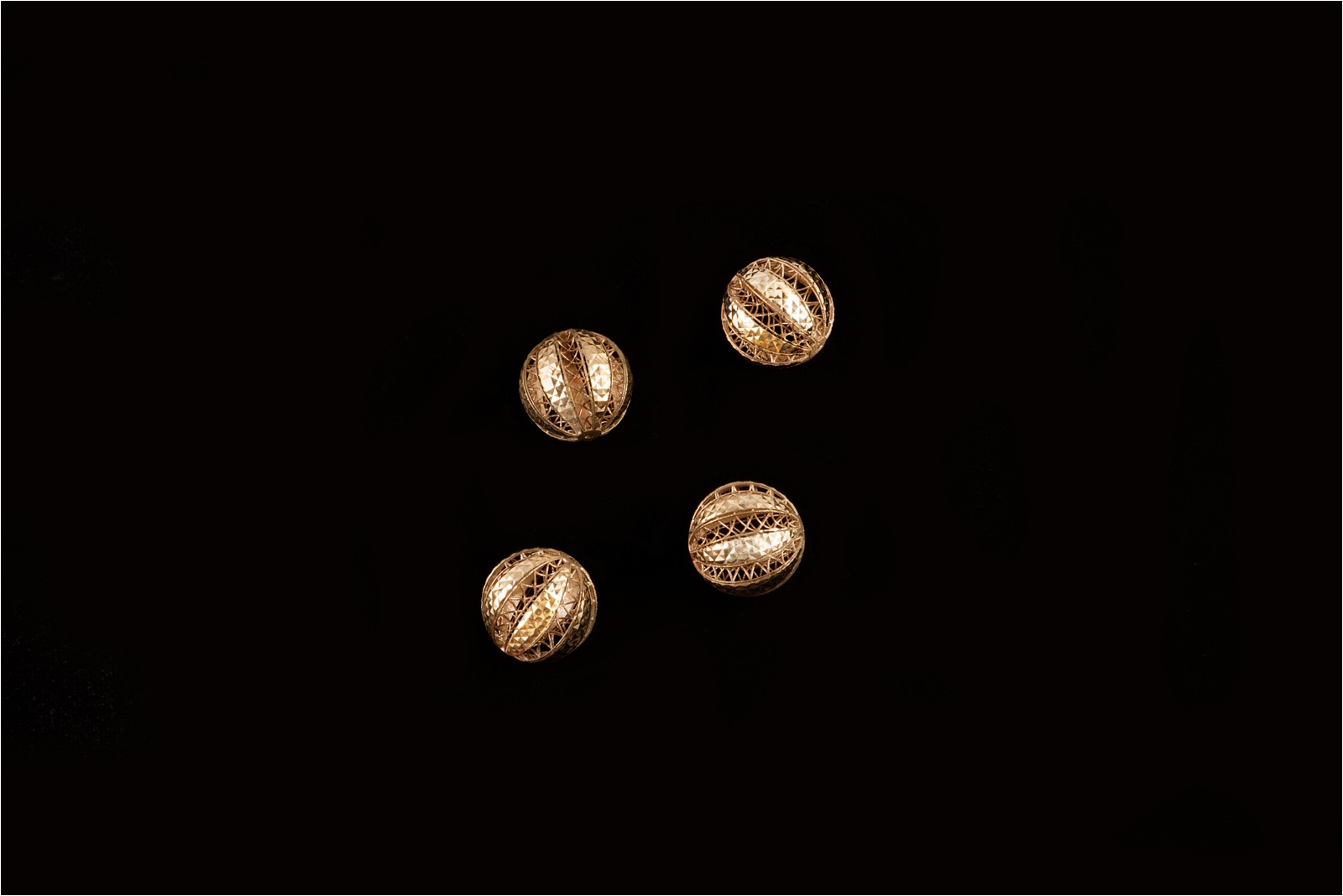

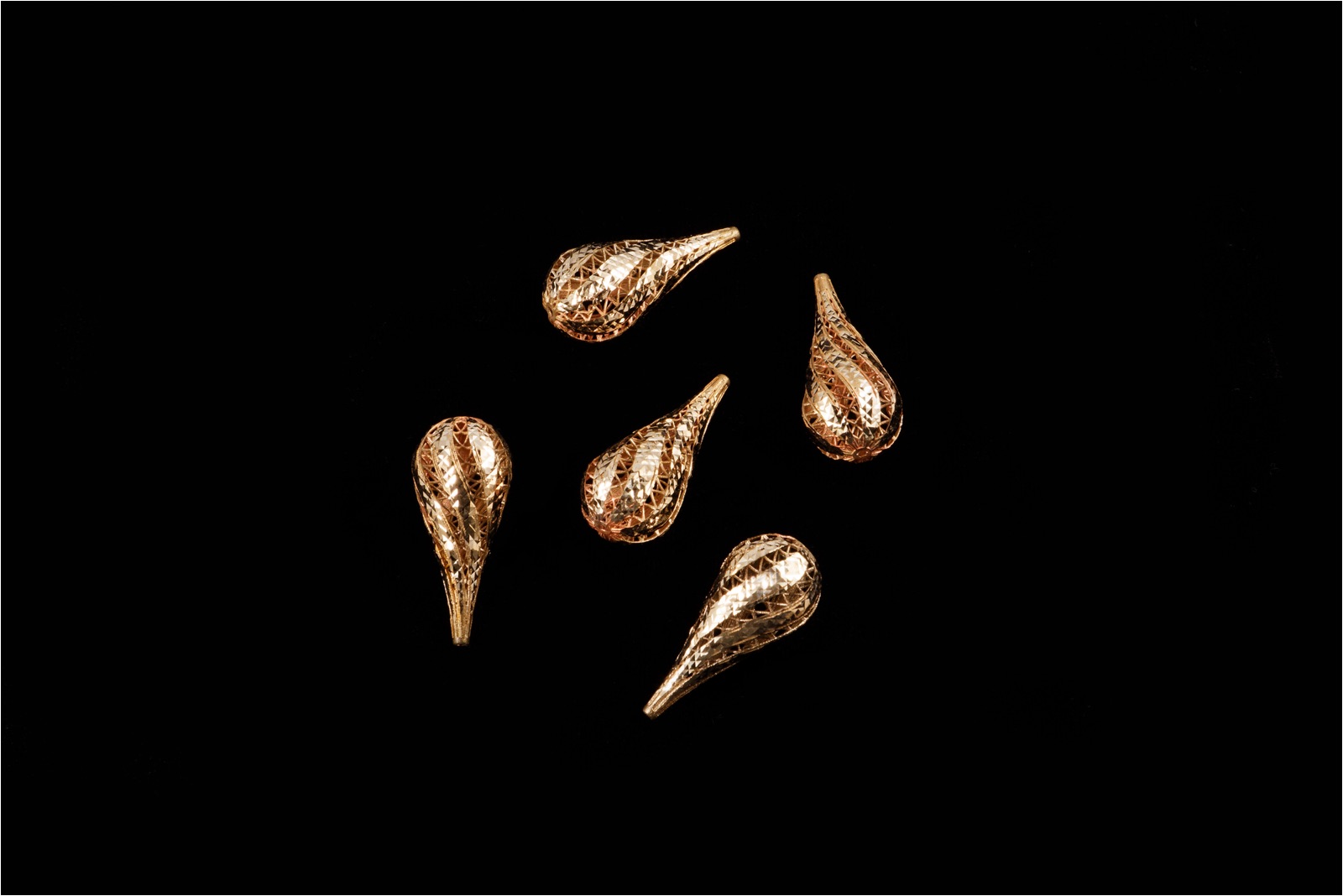

Machinable products Beads made with microcast
Max. Bead Dimension Ø28×45 mm
Number of working axes 12
Axis tilt table -65°/+65°
Axis tilt Tool Heads -45°/+180°
Vertical Head
Tool rotation speed da 0 a 20000 rpm
Tool pincer diameter 6 mm
Horizontal Head
Tool rotation speed da 0 a 15000 rpm
Tool diameter 80 mm
Installation data
Wattage 4,8 KW
Power supply 230 V, 50/60 Hz, 1 ~
Pneumatic supply 6 bar
Weight 700 Kg
