RA 2300 B2

RA 2300 B2

DIAMOND CUTTING MACHINE FOR CHAINS WITH GEOMETRICAL SECTION

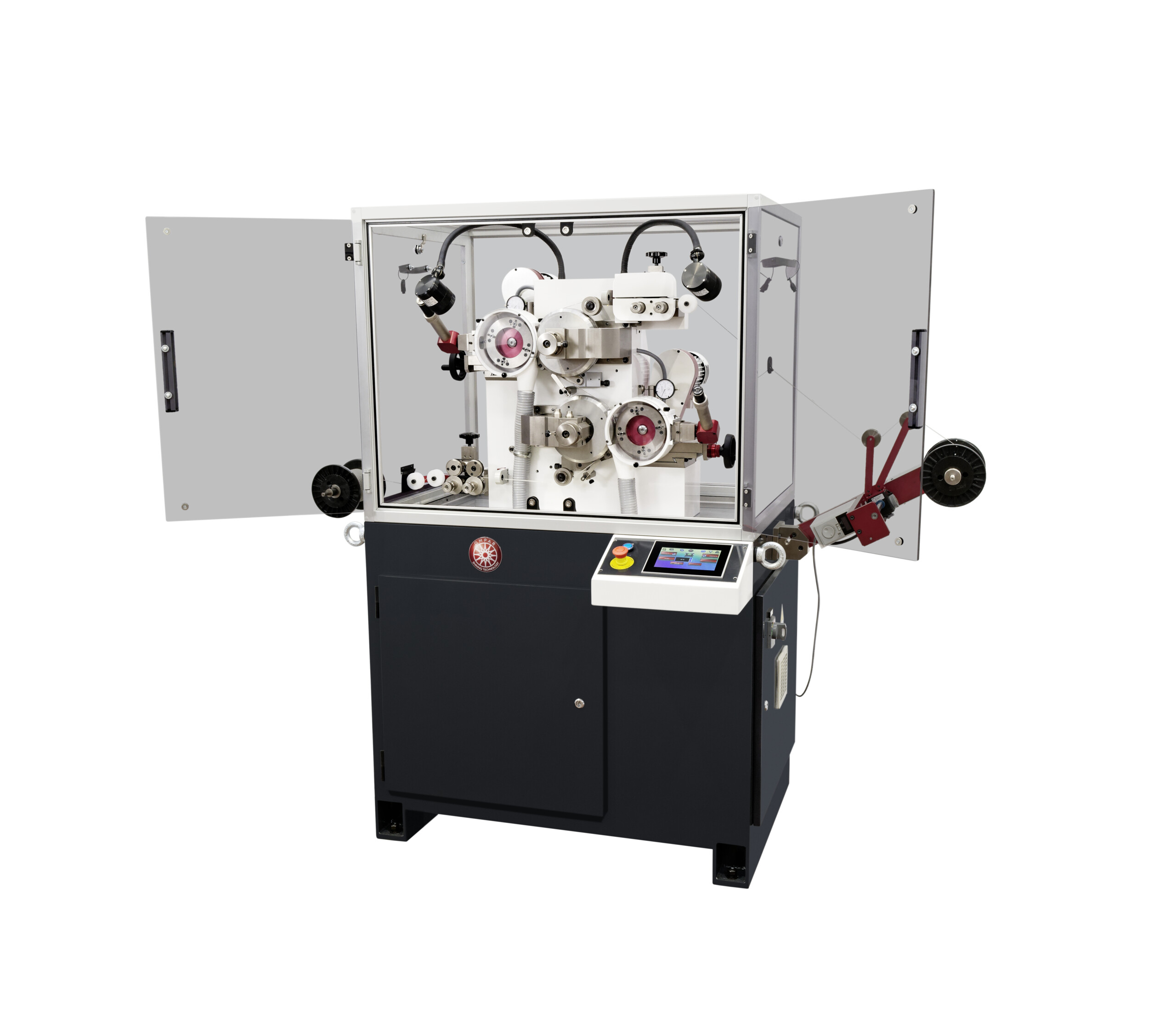

Diamond cutting machine mod. RA 2300 B2 with two horizontal heads suitable to carry out cutting and forming on 4, 6, 8 sides on rope chains, ball-chain and hammered with geometrical shape chains; concave and convex bevelling and forming on medium and big chains.



DOWNLOAD TECHNICAL DATASHEET

SKU: RA-2300-B2 Category: Product ID: 2385

Description

TECHNICAL DATA

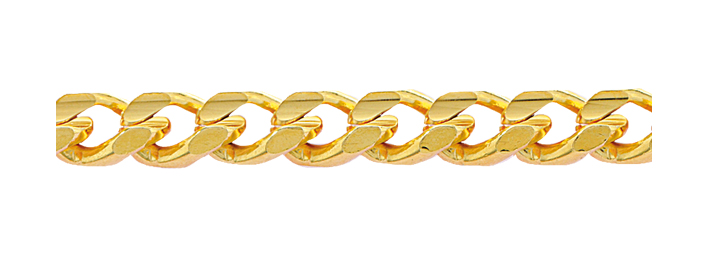

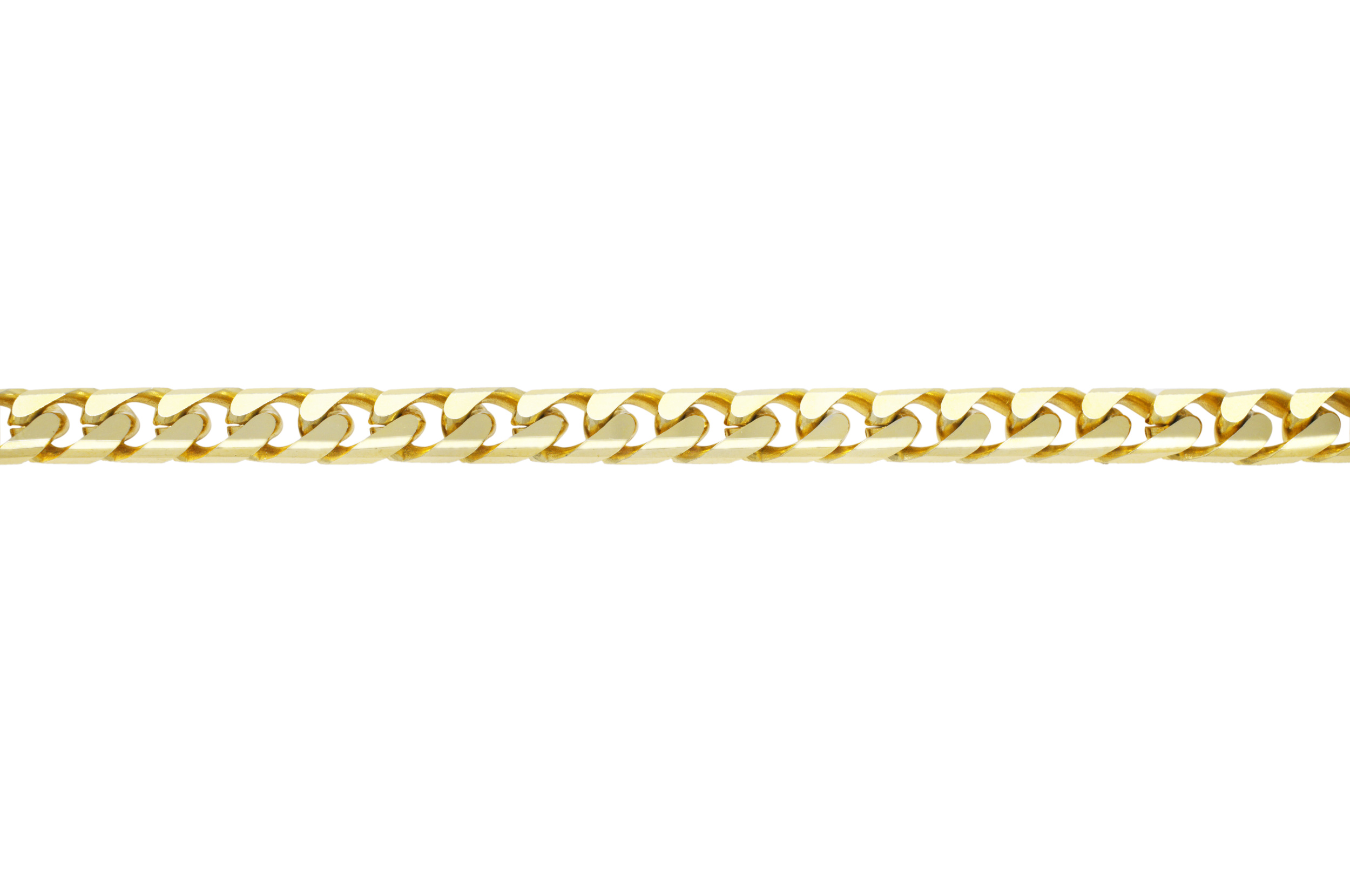

Machinable Products Rope chains, ball-chain and hammered with geometrical shape chains
Number of working axes 2 (Dragging and Vice discs unit/Tool)
Dragging Unit
Feed speed from 0 to 7 m/min
Vice Discs Unit
Discs diameter 190 mm
Horizontal Heads
Speed 7500 rpm
Tool holder diameter 150 mm
Installation Data
Wattage 3,5 kW
Power supply 400 V, 50/60 Hz, 3~
Weight 320 kg
