RA 2300 C / 2300 TWIN

RA 2300 C / 2300 TWIN

SINGLE OR TWIN DIAMOND CUTTING MACHINE FOR BIG CHAINS

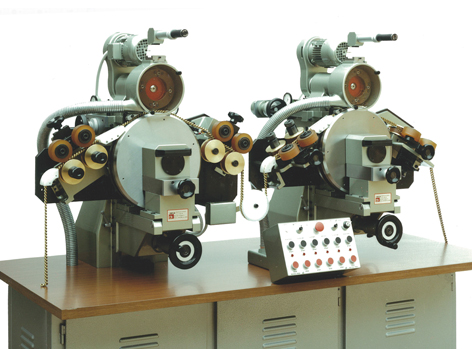

Diamond cutting machine mod. RA 2300 with 1 or 2 horizontal heads suitable for shaping and lapping on long links medium big chains.



DOWNLOAD TECHNICAL DATASHEET

SKU: RA-2300-C-2300-TWIN Category: Product ID: 2398

Description

TECHNICAL DATA

Machinable Products Flat chain (Curb / Figaro) of medium-heavy dimension
Number of working axes 2 (Dragging unit/Tool)
Dragging Unit
Feed speed from 0 to 4.5 m/min

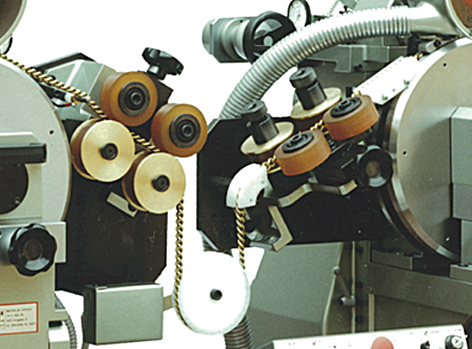

Vice Discs Unit
Discs diameter 350 mm

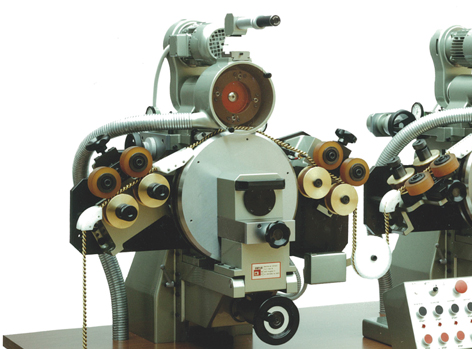

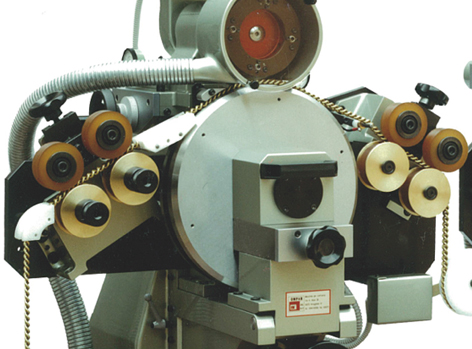

Horizontal Head
Speed 7500 rpm
Tool holder diameter 150 mm
 Vertical Head (Optional)
Speed 12000 rpm
Tool holder diameter 50 mm
Installation Data  Ra 2300 Twin
Wattage 4 kW
Power supply 400 V, 50/60 Hz, 3~
Weight 750 kg
Installation Data  RA 2300 C
Wattage 3 kW
Power supply 400 V, 50/60 Hz, 3~
Weight 370 kg
