C.N.C. PATENTED DIAMOND CUTTING MACHINE FOR SPHERICAL ELEMENTS

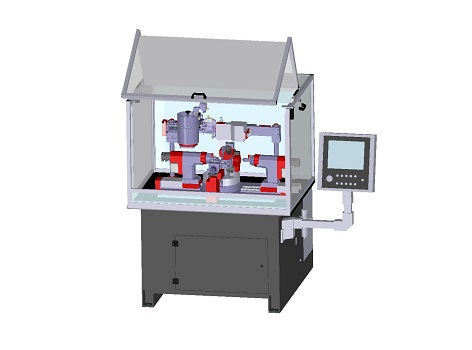

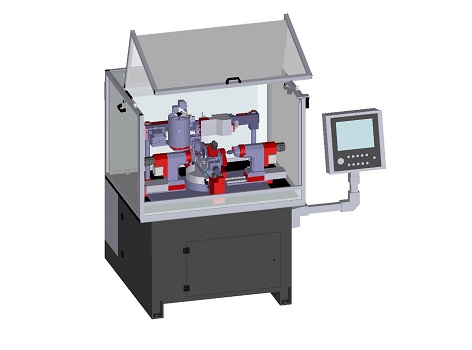

Diamond cutting machine mod. DVP S15 with 14 axes computerised numerical control suitable to perform various decorations on the whole surface of spherical elements.



DOWNLOAD TECHNICAL DATASHEET

WATCH ON YOUTUBE

SKU: DVP-S15 Category: Product ID: 2133

Description

TECHNICAL DATA

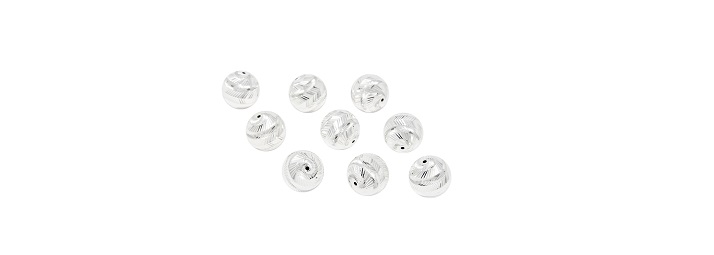

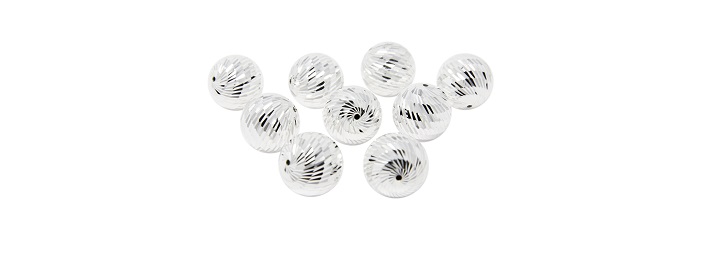

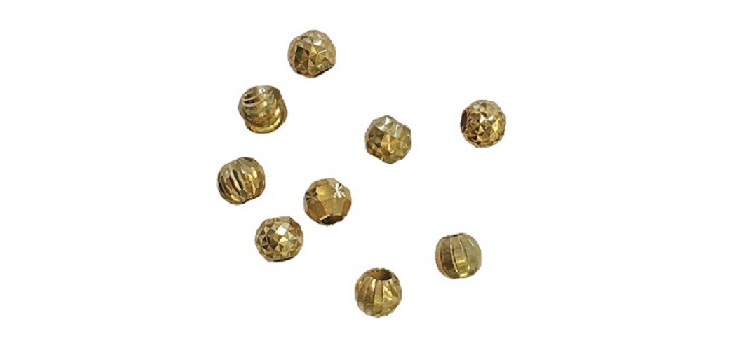

Machinable products Beads
Max. Diameter Beads 20 mm
Number of working axes 14
Axis tilt Table -100° / +100°
Axis tilt Tool Heads -45° / +180°
Beads loader
Max. number of beads 15 beads/min
Vertical Head
Tool rotation speed from 0 to 20000 rpm
Tool pincer diameter 6 mm
Horizontal Head
Tool rotation speed from 0 to 15000 rpm
Tool diameter 80 mm
Installation data
Wattage 5.5 kW
Power supply 230 V, 50/60 Hz, 1~
Pneumatic supply 6 bar
Max. air consumption 60 Nl/min
Weight 900 kg
