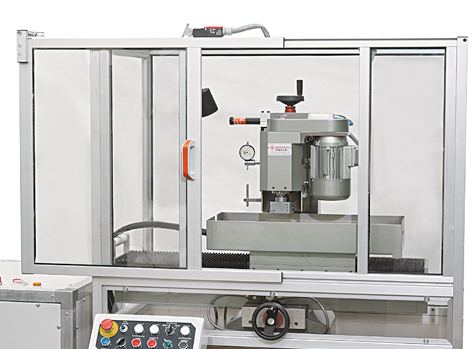

DIAMOND CUTTING MACHINE FOR LAPPING FLAT SURFACES

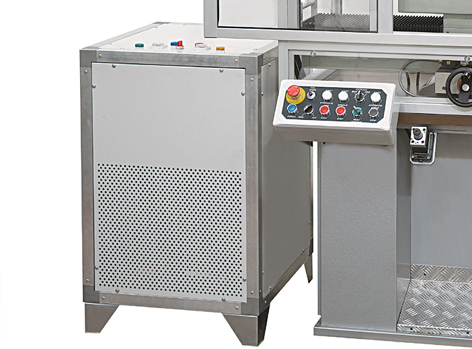

Precise diamond cutting machine mod LSM suitable to carry out lapping cuts on flat surfaces accompanied with icing freezing plate and cooling group for the fixing of items.



DOWNLOAD TECHNICAL DATASHEET

SKU: LSM Category: Product ID: 2220

Description

TECHNICAL DATA

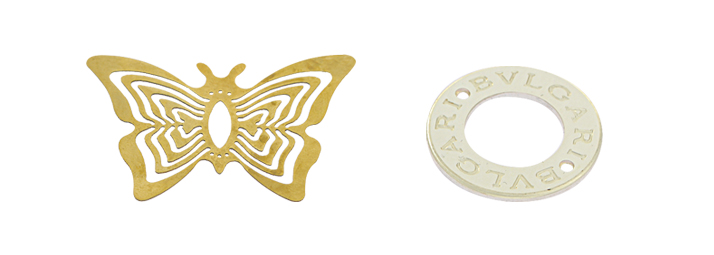

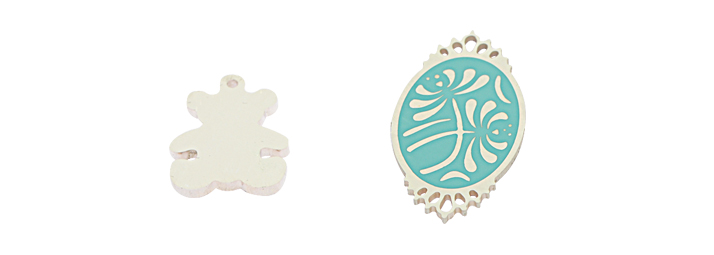

Machinable Products Flat surfaces

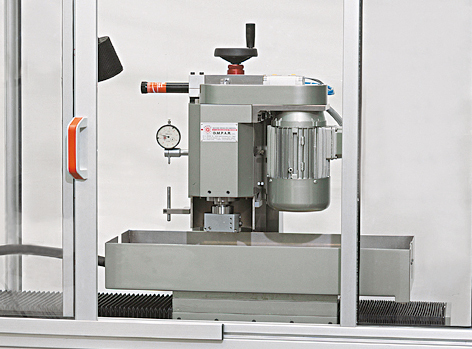

Vertical Head
Speed from 0 to 11000 rpm
Tool holder diameter 100 mm

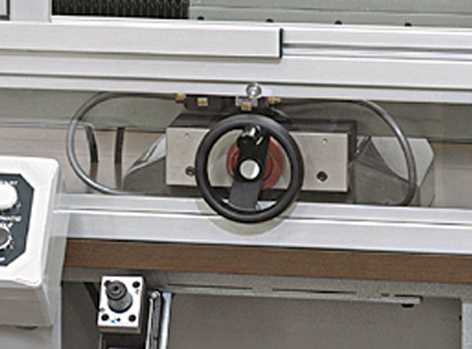

Carriages
Longitudinal Travel 400 mm
Transversal adjustment from -80 to +80 mm
Dimension of the ice plate 300×95 mm
Installation Data
Wattage 3 kW
Power supply 400 V / 50-60 Hz / 3~
Pneumatic supply 6 bar
Weight 550 kg
