C.N.C. DIAMOND CUTTING MACHINE FOR FLAT STRIP

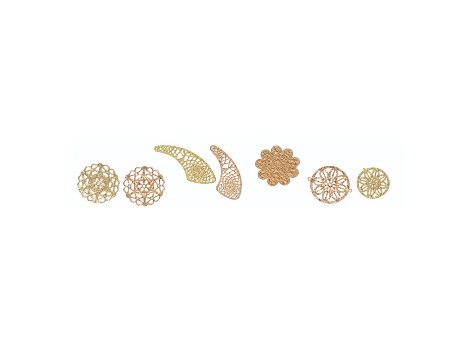

Diamond cutting machine mod. RI 4, with 7 controlled axes, suitable to carry out varied milling cuts and decorations on flat strip.



DOWNLOAD TECHNICAL DATASHEET

SKU: RI-4 Category: Product ID: 2209

Description

TECHNICAL DATA

Machinable Products Strip
Max. width strip 90 mm
Number of working axes 7
   Y-axis transversal travel heads 300 mm
   X-axis longitudinal travel heads 600 mm
   Z-axis vertical travel heads 100 mm
   C-axis rotation Horizontal Head from 0 to 160 rpm
   Vibrations axis from 0 to 6000 shots/min
Vertical Head
Max tool rotation speed from 0 to 60000 rpm
Pincer WK 16
Horizontal Head
Max tool rotation speed from 0 to 5000 rpm
Number of tool 3
Tool holder diameter 75 mm
Installation Data
Power supply 400 V, 50/60 Hz, 3~
Pneumatic supply 6 bar
